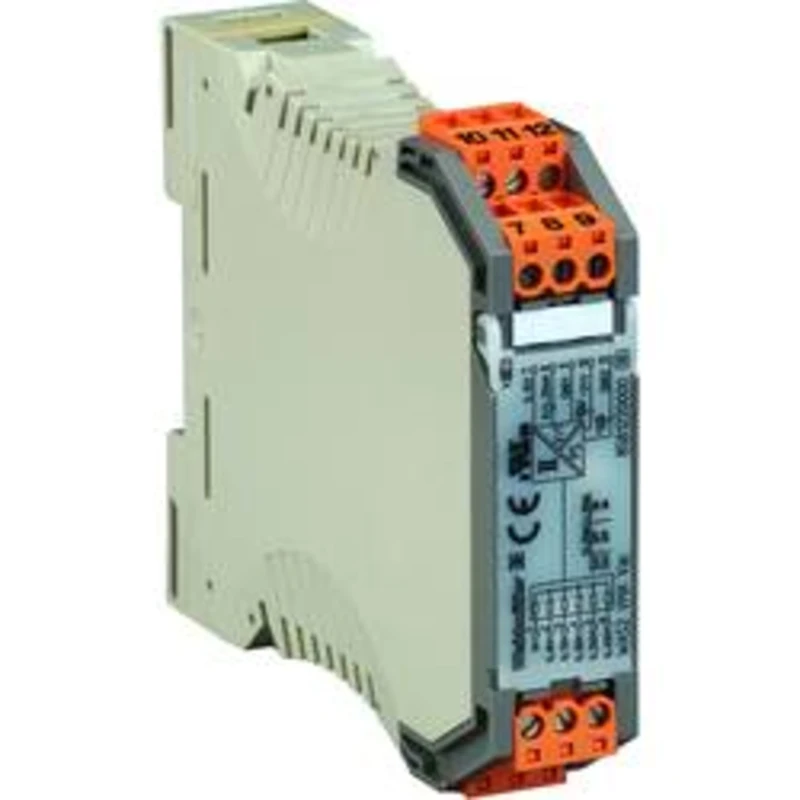

WAVESERIES, Current monitoring, 0...1 A AC/ 0...5 A AC/ 0...10 A AC, 1, 1, Tension clamp connection Weidmüller WAZ1 CMA LP 1/5/10A AC 8528660000 1 ks

Output current loop fed AC current monitoring components WAS/WAZ1 CMA LP. They can measure single-phase 50/60 Hz AC currents of up to 10 A using the Root Mean Square (RMS) method on the input side. They can also be switched between three ranges. No external power supply is used; the supply is only via the 4...20 mA current loop on the output side. The input and output circuits are securely isolated with 4 kV. The monitoring components come in a 17.5-mm-wide WAVEBOX housing. These devices can be used in many process automation applications because they are not dependent on an external power supply.  International approvals (such as ATEX Zone 2 and UL C1D2) also permit usage in explosion-risk zones. WAZ1 CMA LP 1/5/10 A ac
