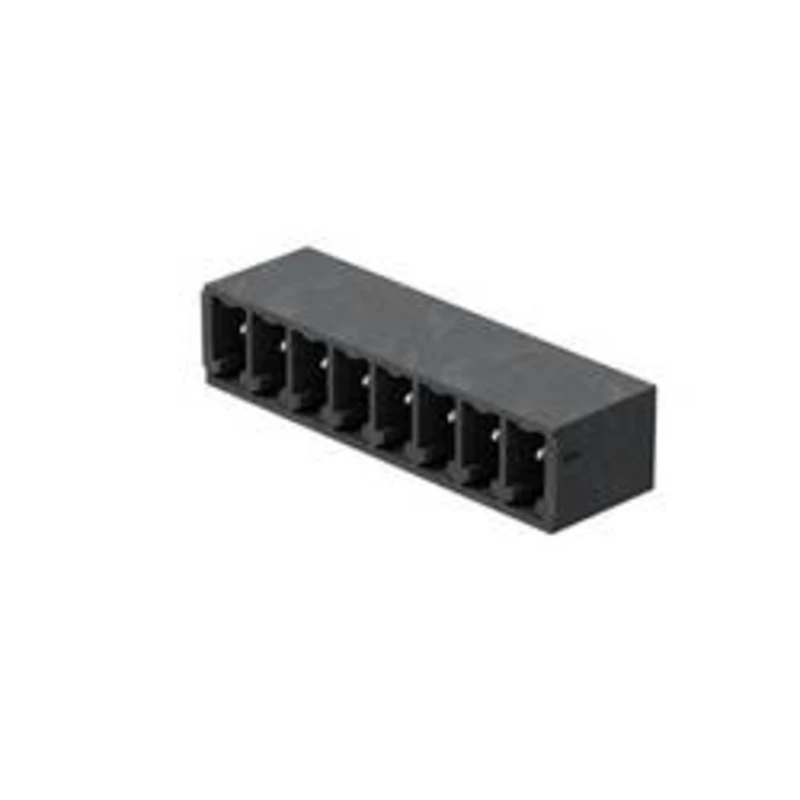

The SC-SMT pin header in 270°-outlet direction: the 270° angle exists between the plugging direction and the solder pin. The plugging direction is then parallel to the PCB. Sockets blocks, however, have an overhead plugging angle. More freedom when designing components and devices. A high component density when multiple PCBs are arranged in parallel within one housing The housing design is application-friendly because of the additional optional wire outlet direction. Available in closed (G) and screw flange (F) versions.Pin length of either 1.5 mm or 3.2 mm Weidmüller's 3.81-mm-pitch (0.15 inch) plug-in connectors are compatible with the layouts of standard connectors and offer space for labelling and coding. 320 V (IEC) / 300 V (UL)17.5 A (IEC) / 10 A (UL) Obsahuje: 50 ks·Počet řádků: 1·Počet pólů: 12
Historie cen
25. 10. 2021
230,37 €
Výrobce
WeidmüllerPodívejte se na další produkty Konektor do DPS Weidmüller SC-SMT 3.81/12/270G 1.5SN BK BX 1036940000, 47.11 mm, pólů 12, rozteč 3.81 mm, 50 ks
