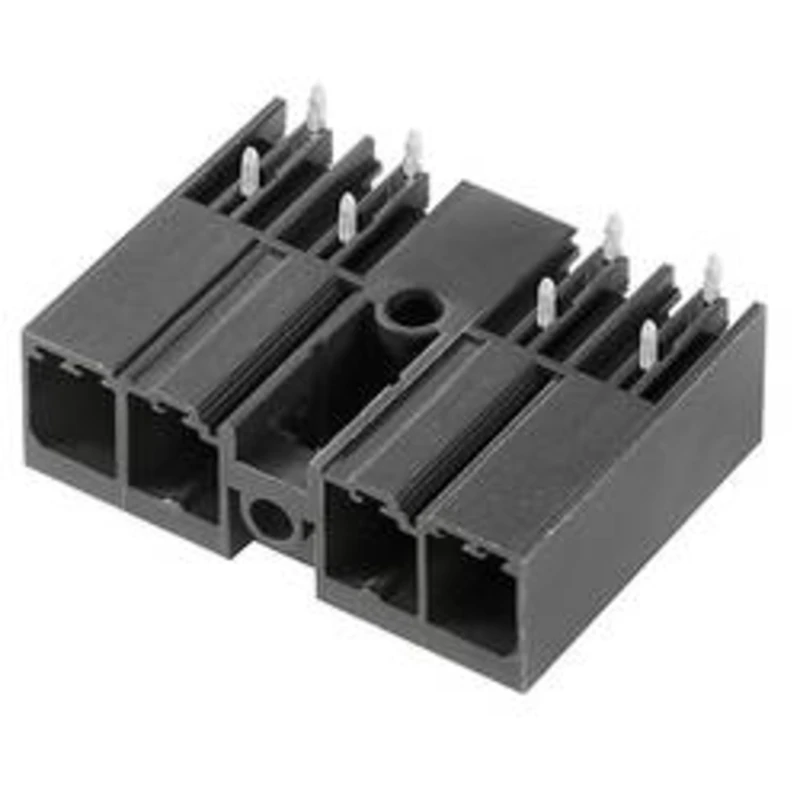

Konektor do DPS Weidmüller SV 7.62HP/04/270MF 3.5SN BK BX 1048550000, 38.10 mm, pólů 4, rozteč 7.62 mm, 48 ks

270° pin header in 7.62 pitch with middle flange. Fulfils the requirements of IEC 61800-5-1 and enables UL approval according to UL840 (600 V). The mating profile (with no socket block) ensures that more than 3 mm of touch safety is present with a finger pressure of 20 N. The middle flange interlocks automatically and is optionally available with screw connection. It decreases the space required by one pitch width when compared to other standard solutions. Available on request with screw flange or without flange. 1000 V (IEC) / 300 V (UL)41 A (IEC) / 35 A (UL)600 V is possible with UL 840 device approval Obsahuje: 48 ks·Počet řádků: 1·Počet pólů: 4
