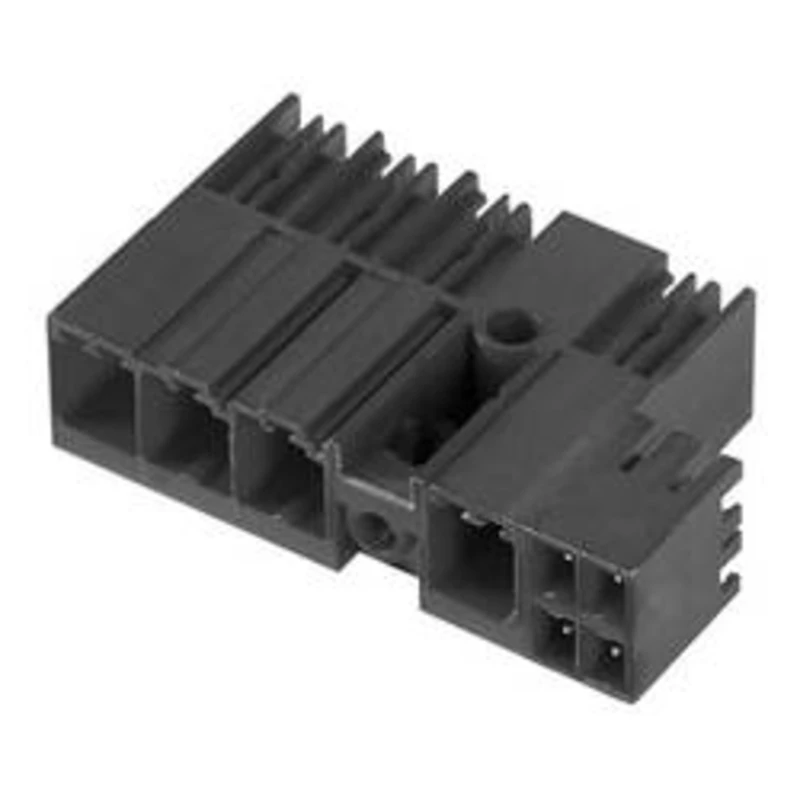

Konektor do DPS Weidmüller SV 7.62HP/04/90MF4 SC/04R SN BK BX 1090130000, 46.71 mm, pólů 4, rozteč 7.62 mm, 36 ks

Combined 90° pin header in 7.62 pitch with power and signal contacts, including auto-interlocking middle flange and (optional) pluggable shield connection. Allows power, signals and (optional) EMC shield to be plugged in simultaneously. It is perfect for connecting servo-drives and asynchronous drives. When used together with a BVF 7.62HP/...BCF..R socket block, they comply with the requirements of IEC 61800-5-1 and enable UL approval according to UL840 600 V. When no socket block is present, the mating profile ensures that more than 3 mm of touch safety is present with a finger pressure of 20 N. The middle flange interlocks automatically. It decreases the space required by one pitch width when compared to other standard solutions. Optionally available on request: without flange fitting, with additional screw fitting, or with solder flange fitting. 1000 V (IEC) / 300 V (UL)38 A (IEC) / 35 A (UL)600 V is possible with UL 840 device approval Obsahuje: 36 ks·Počet řádků: 1·Počet pólů: 4

Historie cen

Výrobce

Weidmüller
