Zásuvkový konektor na kabel Weidmüller BVF 7.62HP/05/180 BCF/08R SN BK BX 1156480000, 46.98 mm, pólů 5, rozteč 7.62 mm, 25 ks

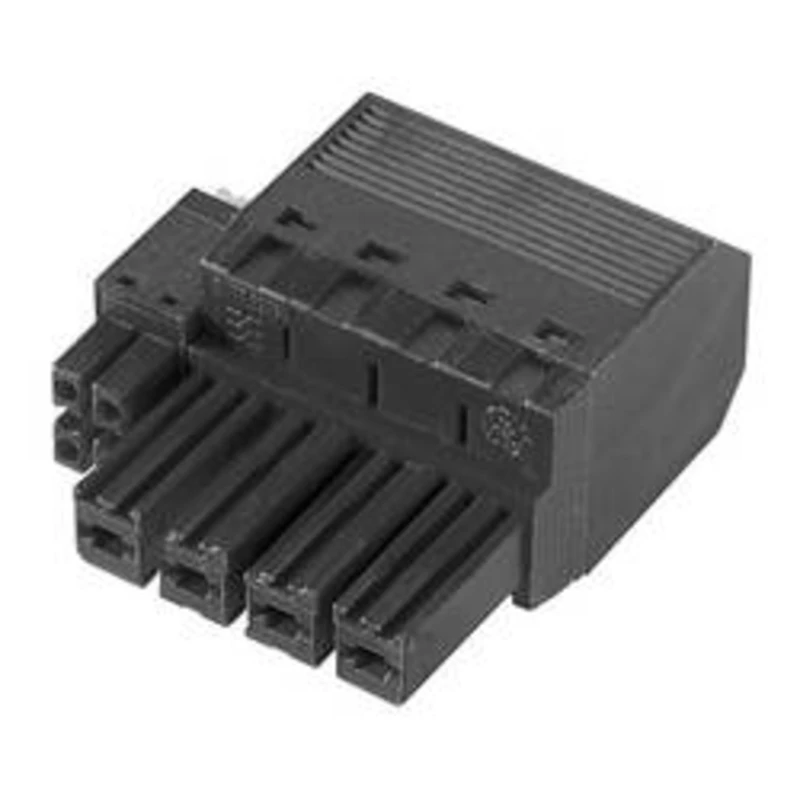

Combined 180° female plug in 7.62 pitch with PUSH IN connection and power/signal contacts: featuring a self-snapping middle flange and optional pluggable shield connection. It allows power, signals and (optional) shielding to be connected simultaneously. It is perfect for connecting servo-drives and asynchronous drives. Fulfils the requirements of IEC 61800-5-1 and (for the power contacts) UL 1059 Class C (600 V). The self-snapping middle flange with automatic interlock decreases the space required by one pitch width when compared to other standard solutions. The pluggable shield connection establishes a large contact area on the device housing and does not need to be screwed on separately. Optionally available on request: without shield connection, without flange fitting, or with middle flange with additional screw fitting. 0.2 - 10.0mm² (IEC) / 24 - 12 AWG (UL)1000 V (IEC) / 600 V (UL)38 A (IEC) / 35 A (UL) Obsahuje: 25 ks·Počet řádků: 1·Počet pólů: 5

Historie cen

Výrobce

Weidmüller
