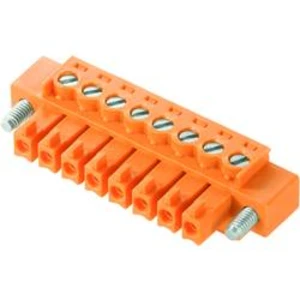

Zásuvkový konektor na kabel Weidmüller BCZ 3.81/08/180F SN OR BX 1941070000, 40.90 mm, pólů 8, rozteč 3.81 mm, 50 ks

Female socket connectors with clamping-yoke screw system for connecting wires. Three wire-outlet directions are available and provide flexible connection-level design options: 180°   wire parallel to plugging direction90°     wire perpendicular and above plugging direction270°   wire perpendicular and below plugging direction There are three housing shapes, covering many different requirements, to choose from: Standard housing without flangeFlange with screw (F)Flange featuring Weidmüller's patented release latch (LR) for lock-and-release latching with no strain and no tools needed. Weidmüller's 3.81-mm-pitch (0.15 inch) plug-in connectors are compatible with the layouts of customary connectors and offer space for labelling and coding. 0.20 - 1.5 mm² (IEC) / 28 - 16 AWG (UL) 250 V (IEC) / 300 V (UL)17.5 A (IEC) / 10 A (UL) Obsahuje: 50 ks·Počet řádků: 1·Počet pólů: 8
