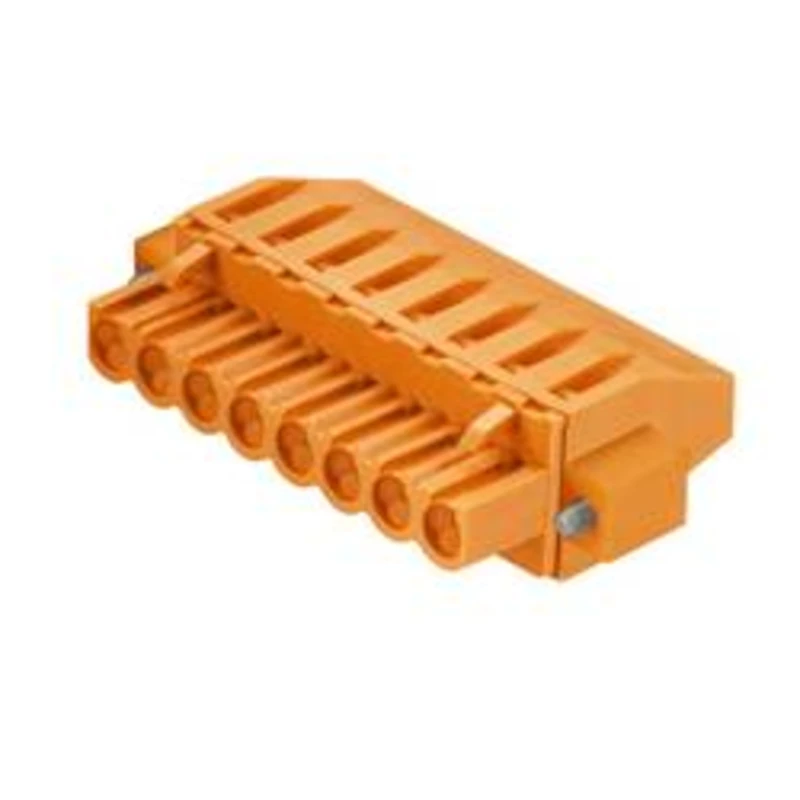

Female plugs with clamping-yoke screw connection for wire connection and a right-angle (90° or 270°) outlet direction. The female plugs provide space for labelling and can be coded. Can be fastened with flange or release latch. They feature an integrated plus/minus screw, protection against false insertion under clamping yoke. They are delivered with an opened clamping yoke. 0.2 – 2.5 mm² (IEC) / 26-12 AWG (UL)400 V (IEC) / 300 V (UL)15 A (IEC) / 10 A (UL) Obsahuje: 12 ks·Počet řádků: 1·Počet pólů: 22
Historie cen
25. 10. 2021
132,01 €
Výrobce
WeidmüllerPodívejte se na další produkty Zásuvkový konektor na kabel Weidmüller BLZP 5.08/22/270F SN OR BX 1950510000, 121.56 mm, pólů 22, rozteč 5.08 mm, 12 ks
