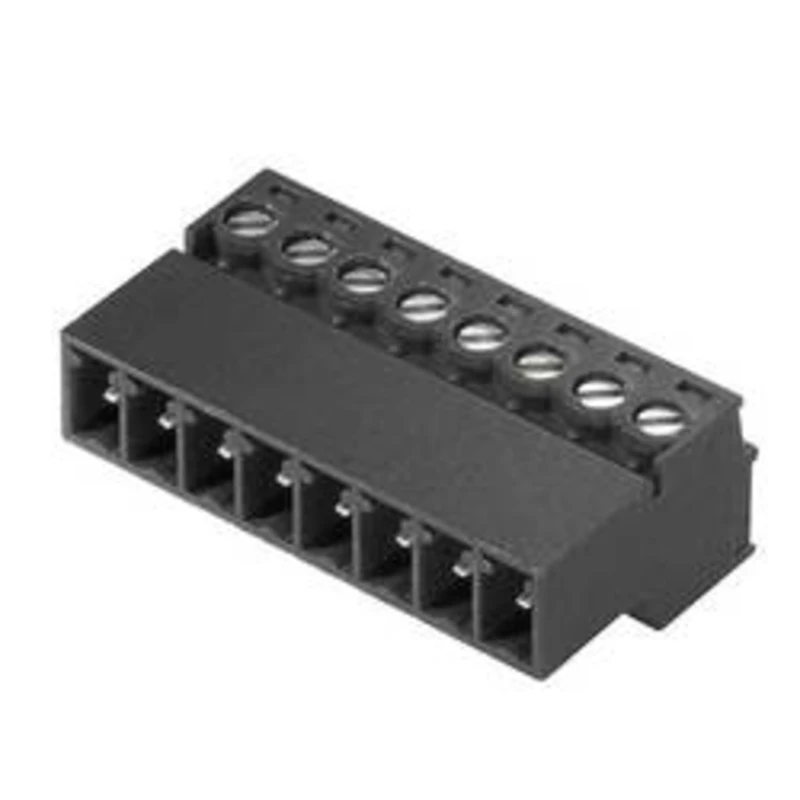

The inverted SCZ pin plug with clamping-yoke screw connection is designed for straight wire connections in 3.81-mm pitch. It can be used in two ways: for wire-to-wire connections together with the BCZas a mating plug for the touch-safe BCL socket block on the PCB. The SCZ is available in four different versions: Without flange ("G", closed)With standard flange ("F", with socket nut)With inverted flange ("FI", with screw)and with Weidmüller's patented release latch for a tool-free, no-strain disconnect The SCZ provides space for labelling and can be coded. 0.20 - 1.5 mm² (IEC) / 28 - 16 AWG (UL) 250 V (IEC) / 300 V (UL) 17.5 A (IEC) / 10 A (UL) Obsahuje: 50 ks·Počet řádků: 1·Počet pólů: 6
Historie cen
25. 10. 2021
187,61 €
Výrobce
WeidmüllerPodívejte se na další produkty Zástrčkový konektor na kabel Weidmüller SCZ 3.81/06/180G SN BK BX 1970060000, 23.66 mm, pólů 6, rozteč 3.81 mm, 50 ks
