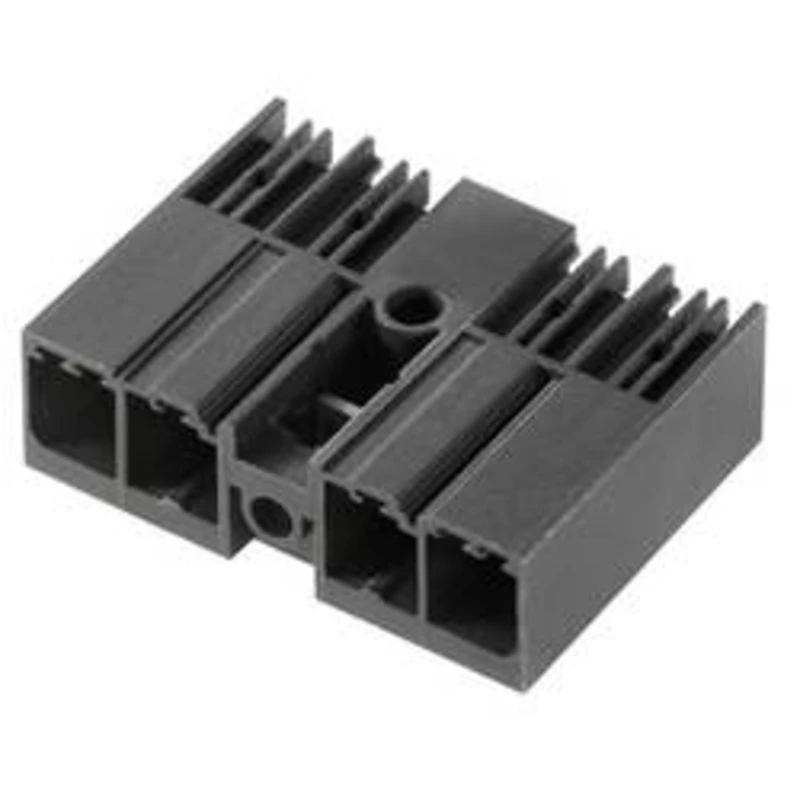

90° pin header in 7.62 pitch with solder flange for 400-V IT systems according to IEC 61800-5-1. UL approval according to UL840 600 V. When used together with a BLZ 7.62 IT socket block, they comply with the expanded requirements for 5.5 mm of touch protection with IT systems (400 V relative to earth), according to IEC 61800-5-1. When no socket block is present, the mating profile ensures that more than 3 mm of touch safety is present with a finger pressure of 20 N. The middle flange interlocks automatically and is optionally available with screw connection. It decreases the space required by one pitch width when compared to other standard solutions. Available on request with screw flange or without flange. 1000 V (IEC) / 300 V (UL)41 A (IEC) / 35 A (UL)600 V is possible with UL 840 device
approval Obsahuje: 60 ks·Počet řádků: 1·Počet pólů: 3
