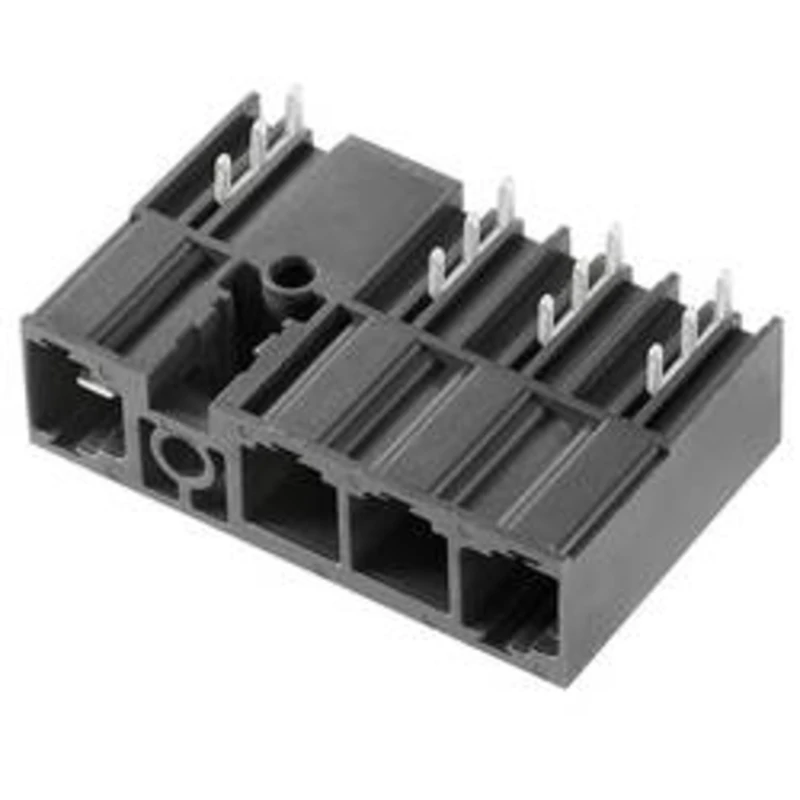

Male header with middle solder flange fastening in 10.16 pitch for 400-V IT systems according to IEC 61800-5-1. UL approval in compliance with UL840 (600 V) when using leading PE contact. When used together with the BUZ 10.16 IT, they comply with the expanded requirements for 5.5 mm of touch protection with IT systems (400 V relative to earth), according to IEC 61800-5-1. With its isolated pin tips, the mating profile ensures that more than 1 mm of touch safety is present (also without a socket block) with a finger pressure of 20 N. The middle-flange interlock feature decreases the space required by one pitch width when compared to other standard solutions. Available on request with screw flange or without flange. 1000 V (IEC) / 300 V (UL)76 A (IEC) / 54 A (UL)600 V is possible with UL 840
device approval Obsahuje: 42 ks·Počet řádků: 1·Počet pólů: 3
více
Nejlevnější produkt
155,04 € | conrad.cz
Máte ve vašem obchodě lepší produkt?
Nejlevnější produkt
155,04 € | conrad.cz
Máte ve vašem obchodě lepší produkt?
K dispozici v
Co říkají obchody
conrad.cz
Male header with middle solder flange fastening in 10.16 pitch for 400-V IT systems according to IEC 61800-5-1. UL approval in compliance with UL840 (600 V) when using leading PE contact. When used together with the BUZ 10.16 IT, they comply with the expanded requirements for 5.5 mm of touch protection with IT systems (400 V relative to earth), according to IEC 61800-5-1. With its isolated pin tips, the mating profile ensures that more than 1 mm of touch safety is present (also without a socket block) with a finger pressure of 20 N. The middle-flange interlock feature decreases the space required by one pitch width when compared to other standard solutions. Available on request with screw flange or without flange. 1000 V (IEC) / 300 V (UL)76 A (IEC) / 54 A (UL)600 V is possible with UL 840 device approval Obsahuje: 42 ks·Počet řádků: 1·Počet pólů: 3
