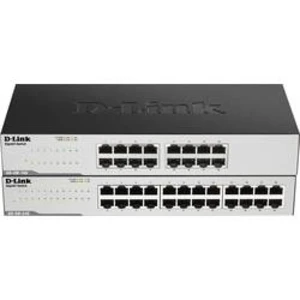

D-Link GO-SW-24G 24-Port GIGABIT DESKTOP SWITCH

D-Link GO-SW-24G
24-Port Unmanaged Gigabit Switch
OVERVIEW
The D-Link GO-SW-16G 16-Port Unmanaged Gigabit Switch and GO-SW-24G 24-Port Unmanaged Gigabit Switch each offer an economical way for SOHO and small to medium businesses (SMB) to deploy an energy-efficient switch that features the increased bandwidth of Gigabit ports.
SPECIFICATIONS
GENERAL
Number of Ports
• Twenty-four 10/100/1000 Gigabit ports
Standards
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control
Data Tranfer Rates
Ethernet:
• 10 Mbps (half duplex)
• 20 Mbps (full duplex)
Fast Ethernet:
/> • 100 Mbps (half duplex)
• 200 Mbps (full duplex)
Gigabit Ethernet:
• 2000 Mbps (full duplex)
Network Cables
10BASE-T:
• UTP CAT 3, 4, 5/5e (100 m max)
• EIA/TIA-586 100-ohm STP (100 m max)
100BASE-TX, 1000BASE-T:
• UTP CAT 5/5e (100 m max)
• EIA/TIA-568 100-ohm STP (100 m max)
FUNCTIONALITY
D-Link Green Features
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Link status detection power saving
• Cable length detection power saving
• RoHS Compliance
LAN Features
• Back pressure at half-duplex operation
• Auto MDI/MDIX
• Wire speed reception and transmission
• Store-and-Forward switching method
• 16K MAC addresses
• 3.5 Mbits RAM for data buffering
• Jumbo Frames: 9216 Bytes
• Switching Capacity 48 Gbps
Port Packet Filtering
• 10M: 14,880 pps
• 100M: 148,800 pps
• 1000M: 1,488,000 pps
PHYSICAL
LEDs
• Power LED
• 24 Link/Activity/Speed LEDs (one per port)
Power Inputs
• Switching 12V/1A level V power adapter
Power Consumption
• Power on (standby): AC input: 4.94 Watts
• Power max.: AC input: 15.7 Watts
Heat Dissipation
• Power on (Standby): AC input: 16.86 BTU/h
• Power max.: AC input: 53.58 BTU/h
MTBF
• 336,072 hours
Dimensions
• 257 x 178 x 46 mm
Weight
• 0.76 kg
Operating Temperature
• 0 to 40 °C
Storage Temperature
• -10 to 70 °C
Humidity
• 5% to 90% non-condensing
Certifications
• FCC Class A
• ICES-003 Class A
• CE Class A
• C-Tick Class A
• CB
• cUL více
