T3700G-52TQ

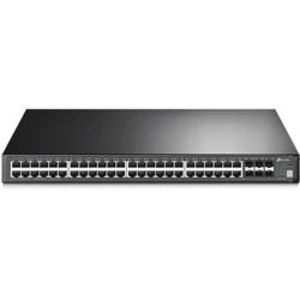

JetStream 52-Port Gigabit Stackable L3 Managed Switch
Odkaz na web výrobce:
Shrnutí vlastností
*Abundant Layer 3 routing protocols including RIP/OSPF/ECMP/VRRP that support a scalable network
*True Physical Stacking technology supports up to 8 units for high scalability and efficient redundancy
*10 Gigabit Ethernet uplink provides high-bandwidth applications for congestion relief and smooth data delivery
*Dual removable power units minimize downtime
*PIM-SM/PIM-DM/IGMP Snooping for resilient video deployments
*RJ45/Micro-USB Console ports and out-of-band Management port provide a range of management options
*A USB 2.0 port makes it easy to import files and restore configurations
Specifikace
HARDWARE FEATUR ES
*Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
*Interface
48 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 Combo Gigabit SFP Slots
Up to 4 10G SFP+ Slots (2 fixed and 2 optional)
1 Micro-USB, 1 RJ45 Console Port
1 Management Port
1 USB Slot
*Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR
*Fan Quantity
2 Removable
*Power Supply
100~240VAC, 50/60Hz
Dual Hot-swappable power supply module: PSM150 (Maximum Output Power: 150W)
*Dimensions ( W x D x H )
17.32*16.55*1.73 in. (440*420*44 mm)
PHYSICAL STACKING
*Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables
TXM431-SR
TXM431-LR
TXC432-CU1M
TXC432-CU3M
*Max Number of Stacking Ports Installable
2 SFP+
*No. of Units Per Stack
8
*Stacking Speed (Per Port)
20 Gbps (Full-Duplex)
PERFORMANCE
*Switching Capacity
Up to 176Gbps for a standalone switch
*Packet Forwarding Rate
Up to 130.9Mpps for a standalone switch
*MAC Address Table
32K
*Packet Buffer Memory
4MB
*Jumbo Frame
12KB
*Number of Routes
8K IPv4
*Number of Static Routes
256 IPv4
*Number of IP Interfaces
128 IPv4
SOFTWARE FEATURES
*Quality of Service
Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Ingress/Egress DiffServ
Port/Flow- based Rate Limiting
Voice VLAN
*L2 Features
IGMP Snooping V1/V2/V3
MVR
802.3ad LA více
