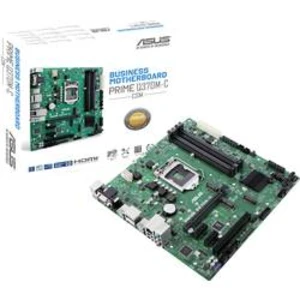

ASUS PRIME Q370M-C

Technické specifikace:
*CPU: Intel® for 8th Generation Core™ Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
*Chipset: Intel® Q370
*Paměť: 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
*Grafika: Integrated Graphics Processor- Intel® HD Graphics support
*Rozřiřující sloty:
1 x PCIe 3.0/2.0 x16
2 x PCIe 3.0/2.0 x1
1 x PCI
*Úložiště:
Intel® Q370 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
*LAN: Intel® I219LM, 1 x Gigabit LAN Controller(s)
*Audio: Realtek® ALC887 8-Channel High Definition Audio CODEC *1
*USB Porty:
Intel® Q370 Chipset :
4 x USB 3.1 Gen 2 port(s) (4 at back panel, , Type-A, 0 at mid-board)
Intel® Q370 Chipset :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, )
Intel® Q370 Chipset :
4 x USB 2.0 port(s) (2 at back panel, , Type-A, 2 at mid-board)
*Operační systémy: Windows® 10
*Zadní I/O porty
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
2 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 2 Type-A
2 x USB 2.0
3 x Audio jack(s)
*Vnitřní I/O Porty
1 x MONO out header *2
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
1 x LPT header
2 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x M.2 Socket 1 with E key, type 2230 for Wi-Fi/BT devices support or PCIE/USB mode
1 x LPC Debug header
*uATX Form Factor: 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Více informací na webu výrobce: https://www.asus.com/Motherboards/PRIME-Q370M-C/specifications/ více
